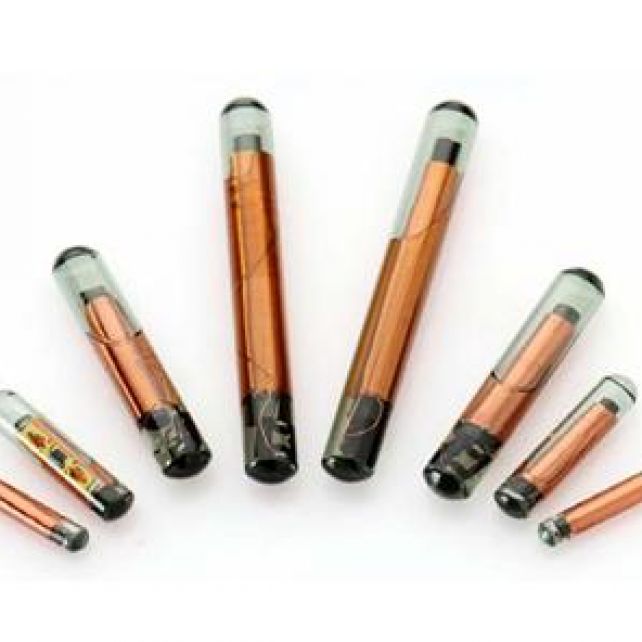

Glass Tag

Available in different sizes 2 x 12 mm, 3 x 14 mm, 4 x 22 mm and 4 x 34 mm.

Electrical Characteristics
Operating Frequency					125 KHz /13,56 MHz
IC Technologies					NXP, EM MARIN, ATMEL
Memory Size					Depends on IC type
Thermal and Environmental Characteristics
Storage Temperature					-40ºC up to +100ºC
Operating Temperature					-40ºC up to +85ºC
Packaging Protection Class					IP 68
Shock and Vibration					IEC 68-2-6/29
RoHs Compliance					YES
Physical Characteristics
Available Size		12 mm	14 mm	22 mm	32 mm	34 mm
Length		12,0 mm	14,0 mm	22,0 mm	32,0 mm	34,0 mm
Thickness		2,0 mm	3,0 mm	4,0 mm	4,0 mm	4,0 mm
Weight		0,2 g	0,3 g	0,6 g	0,9 g	1,0 g
Material	Bioglas and Epoxy
Colour	Transparent
